제품 상세정보
원래 장소: 첸젠, 중국
브랜드 이름: Flo-Instru
인증: ISO:9001, CE
모델 번호: FL101
지불과 운송 용어
최소 주문 수량: 1
포장 세부 사항: 전통적 패키징
배달 시간: 3~5 일
지불 조건: T/T
흐름 범위: |
0.1m/s ~ 10m/s |
정확성: |
±1.0% |
(선택적인) 파이프 직경 범위: |
OD20,OD25,OD32,OD40 |
측정 매체: |
물, 용액, 화학 시약 (불순물 ≤ 4%) 등 |
파이프 섹션 재료 (선택 사항): |
업프크 |
통신 인터페이스: |
RS485, MODBUS RTU 프로토콜을 지원합니다 |
전원 공급: |
24V DC |
건반: |
4개의 터치 키 |
표시: |
1.54 ''240*240 IPS LCD 360 ° 회전 (쉽게 읽기 위해) |
흐름 범위: |
0.1m/s ~ 10m/s |
정확성: |
±1.0% |
(선택적인) 파이프 직경 범위: |
OD20,OD25,OD32,OD40 |
측정 매체: |
물, 용액, 화학 시약 (불순물 ≤ 4%) 등 |
파이프 섹션 재료 (선택 사항): |
업프크 |
통신 인터페이스: |
RS485, MODBUS RTU 프로토콜을 지원합니다 |
전원 공급: |
24V DC |
건반: |
4개의 터치 키 |
표시: |
1.54 ''240*240 IPS LCD 360 ° 회전 (쉽게 읽기 위해) |

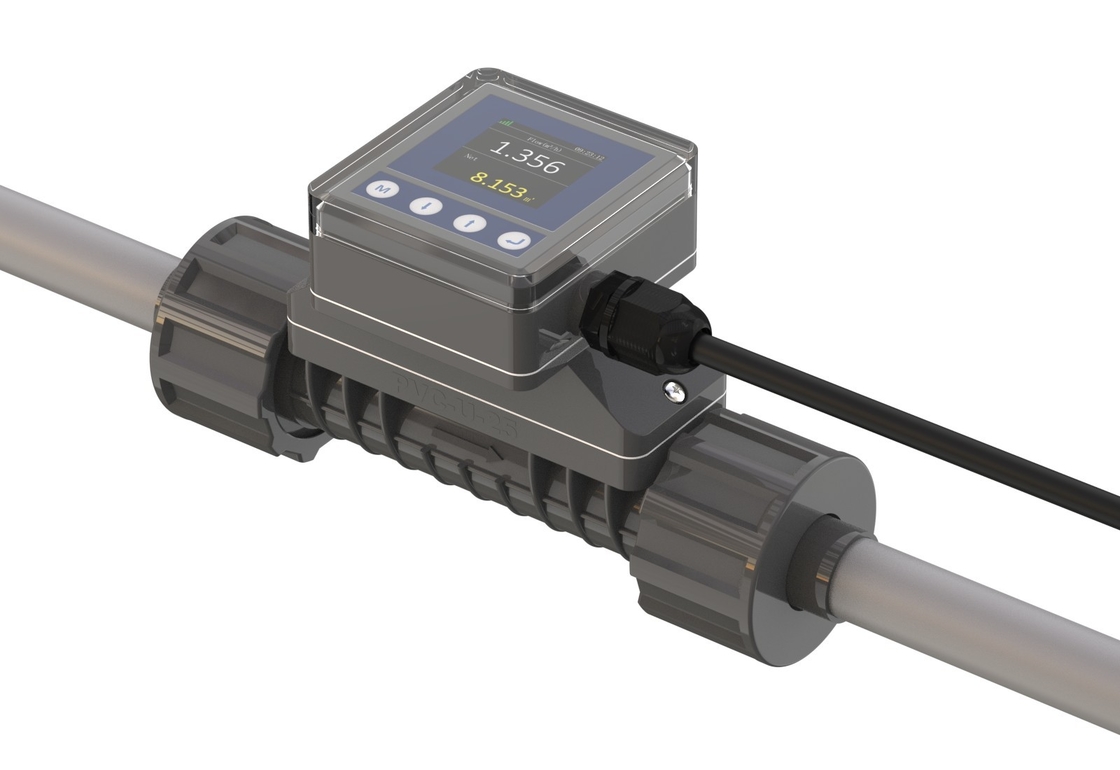

FL101 In-Line Ultrasonic Flow Meter
Product Information
FL101 is specially used to measuring the flow of various liquids in pipelines, realizing real-time flow measurement in the production process. The instruments outputs digital signals, analog signals, etc., so as to realize the measurement and control of the production process.
Due to the need of industrial upgrading, instruments are required to have rich outputs to achieve automation. However, the output of traditional flow meters is relatively simple and cannot meet on-site needs, and it need to be replaced in the original position.
Flo-Instruments has launched a in-line flow meter with a full straight pipe design without pressure loss, double union connection, and simple installation.
Benefits
| The in-line ultrasonic flow meter has an advanced measurement chip built in (time resolution up to 20ps) |
|
|
|
||
|
|
|
Product Features
Dimension
| Model | NominalPipe Diameter | L | A | B | C | D |
| PVC-U-20 | DN15 | 146 | 182 | 53.5 | 93.7 | 20 |
| PVC-U-25 | DN20 | 149 | 189 | 57.3 | 98.2 | 25 |
| PVC-U-32 | DN25 | 157 | 205 | 70 | 108 | 32 |
| PVC-U-40 | DN32 | 157 | 211 | 83 | 118.5 | 40 |
| Unit: mm | ||||||
| Note: | ||||||
| "L"is the length of the pipe section cut off during installation; "D"is the outer diameter of the installed pipe section. |
||||||
Compatible Medium
Since the product was put on the market, it has been widely used in the cleaning equipment industry. Due to its simple installation and operation, and reliable measurement performance, it has been continuously promoted in new industries.
Main industries: semiconductors, food, medicine, drinking water, detergents, printing and dyeing, chemical products, etc.
|
The medium users have measured:
|
As the market expands, we will find that there will be more and more media to be measured. We hope that users will share more applications so that we can continuously enrich and improve our products.
Determination of measurable media:
|
|
Technical Information
Parameter
| Product Name | FL101 In-line Ultrasonic Flow Meter |
| Accuracy | ±1.0% (0.3m/s~5.0m/s) |
| Flow Velocity | 0.1m/s~10.0m/s |
| Linearity | ±1.0% (0.3m/s-5.0m/s) |
| Repeatability | 0.40% |
| Response Time | 500ms |
| Screen Display | 1.54’’ 240*240 IPS LCD 360° rotation (for easy reading) |
| Menu Language | Simplified Chinese/Traditional Chinese/English |
| Display Unit | Supports metric and imperial unit selection, m³/h, LPM, ml/min, GPM, LPH, the factory default unit is LPM |
| Display Data | Instantaneous flow, instantaneous flow velocity, net cumulative volume, single cumulative volume, daily max value, daily min value, daily/monthly/annual cumulative volume |
| Totalizer | 7-digit flow totalizer |
| Cumulative Data | 10 years 64 months 64 days |
| Operation Key | Four touch buttons |
| Calendar Battery | CR1220 |
| Power Supply | 24VDC@3W |
| Analog Output | 4-20mA, maximum load 600Ω |
| Communication Interface | RS485, support ModBus RTU protocol |
| Alarm Output | OCT upper and lower limit alarm output, pulse output, etc. |
| Relay Output | (Optional) 30VDC@1A, switching frequency less than 2Hz |
| Media | Water, solutions, chemical reagents (impurities ≤ 4%), etc. |
| Protection Level | IP66 |
| Installation Method | The pipe sections are integrated, and the PVC-U pipes are connected by unions (slip joints). |
| Pipe Size | OD20 (DN15-½") , OD25 (DN20-¾") , OD32 (DN25-1") ,OD40 (DN32-1½") |
| Pipe Section Material | UPVC |
| Media Temperature | 0°C-60° |
| Working Temperature | -10°C-50°C |
| Ambient Humidity | Relative humidity 0%-95%, no condensation |
| Applicable Viscosity | <300CST (mm²/s) |
| Cable Length | Standard: 2m(6.6ft). It can be lengthened to 20m(66ft) |
Installation
| 1. Cutting the pipe | |
|
According to the installation point selection requirements, cut a section of the pipe at the installation location. |
| 2. Insert the nuts into the pipe | |
|
Unscrew the two nuts from the meter and insert them into the pipe. |
| 3. Glue the pipe joints | |
|
Apply PVC glue to the two pipe joints on the instrument and plug them into the pipes. |
| 4. Install the flow meter | |
|
Place the meter in the middle and tighten the nut to complete the installation; pay attention to the flow direction during installation. |
| 5. Power on and run | |
|
Connect the other end of the cable to a 24V DC power supply, power on and observe. |
Package & Accessory
Order Information
| FL101 | Code | Pipe Size Rang [DN &Inch &OD] | ||||
| A | DN15 | 1/2" | OD20 | |||
| B | DN20 | 3/4" | OD25 | |||
| C | DN25 | 1" | OD32 | |||
| D | DN32 | 1-1/4" | OD40 | |||
| Code | Output Mode | |||||
| 1 | 4-20mA,RS485,OCT Pulse,Relay | |||||
| Code | Cable Length | |||||
| L | 6.6ft(2m)(If no choice,it will be defaulted) | |||||
| L+ | on request other lengths | |||||
| FL101 | A | 1 | L | Complete ordering information | ||
