ST502 Insertion Ultrasonic Flowmeter for Liquid Flow Measurement with High Measurement Accuracy

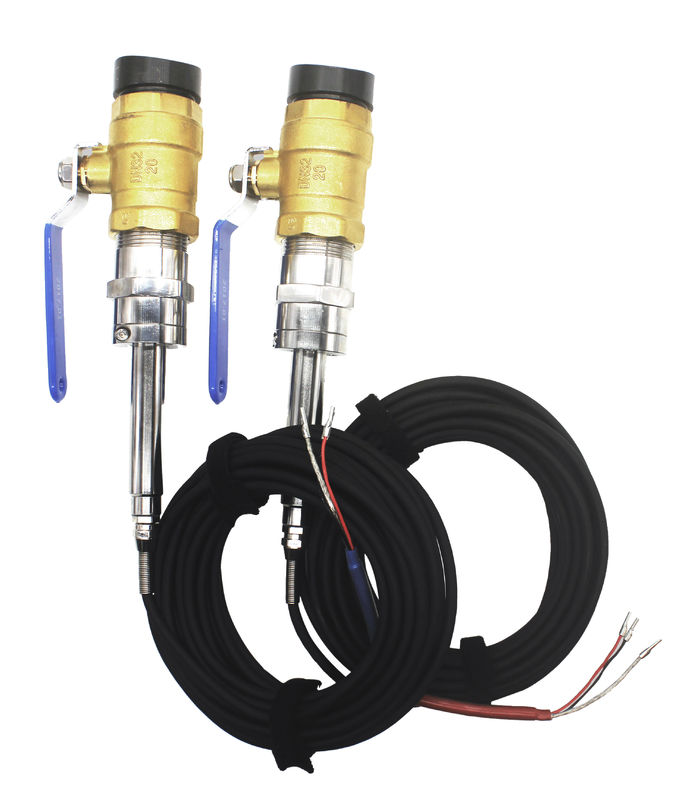

ST502 Insertion Type Ultrasonic Flowmeter

Ultrasonic flow meters that use transit-time methods to measure flow.

Introduction

ST502 Ultrasonic flow meter uses the most reliable digital signal processing technology, transmitting flow measurement for a wide range of liquid and pipe size with high accuracy and reliability. Combined the outstanding performance transducer with higher industrial level material, Flo-Instruments can have long time work without any worries.

Clear menu display selections make use of instruments very convenient. The IP68 transducer is more suitable for applying in harsh environments such as humidity and immersion. Simple interface makes it very convenient to operate.

The ST502 ultrasonic flowmeter is based on Transit-Time technology, which has high measurement accuracy. Insertion transducer refers to inserting the transducer into the inside of the pipeline for flow measurement. It can accurately measure the flow rate and flow velocity inside the liquid pipeline. The advantage of the insertion transducer is that it can keep the outer surface of the pipe flat, thereby reducing pressure loss, and has high reliability and measurement accuracy.

Benefits

• Measures the actual flow and total consumption of various liquids
• CNC machined process, magnetic open cover technology without any screws.
• Adaptive signal processing algorithms optimize performance, ensuring accurate measurements even in challenging flow conditions
• Clear display interface and LCD display with alarm function, easy to operate and debug
• Utilize transit-time ultrasonic technology so as to realize bidirectional flow measurement by precisely measuring the time it takes for ultrasonic signals to transmit upstream and downstream
• Built-in 2G SD card and leverage storage capabilities to analyze historical flow data to make system optimization.
• Built-in keypad and simple menu system for fast and easy option of pipe diameter, pipe material, liquid type, and measurement units.

ST502 is a brand-new high-end product that is made of aluminum alloy material and realizes CNC processing method. It adopts the industry-leading full-sealed iron-absorbing side-opening technology without any screw locking, and the tedious steps of screwing are reduced. Such a convenient design truly realizes "one-second opening".

Principle

• Introduction to TVT

TVT(Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining the principles of transit-time ultrasonics with the capability to harness the vortex shedding phenomenon, delivering unparalleled accuracy and versatility in ultrasonic flow meters. This innovative integration technology enhances the accuracy, versatility, and performance of ultrasonic flow meters, making them well-suited for a wide range of applications across various industries and is a valuable solution for industries requiring precise flow measurements in varying flow conditions.

• Enhanced Accuracy in Turbulent Flows:

TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent. The incorporation of vortex shedding data enhances accuracy in challenging flow environments.

• Versatility in Fluid Types:

TVT technology is versatile and suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

• Flo-Instruments ST502 ultrasonic flowmeter offers high-accurate and repeatable flow measurement for liquids at an economical price. It is made of strong metal case. Combined the outstanding performance transducer with high industrial grade material, it's ideal for pipes size from 1''(25mm) up to 200''(5000mm) in diameter. IP68 sensors that are easy to install requires this pipe not to be cut, thus reducing installation and labor costs. Simple interface makes it very convenient to operate.

Applications

Insertion type ultrasonic flowmeters are mainly used to measure volume flow in conductive liquids and slurry in closed pipes. Including acid, alkali, salt and other highly corrosive liquids. Insertion type ultrasonic flowmeters are widely used in petroleum, chemical, metallurgy, textile, food, pharmaceutical, paper-making and other industries, as well as environmental protection, municipal management, water conservancy construction and other fields.

Specifications
